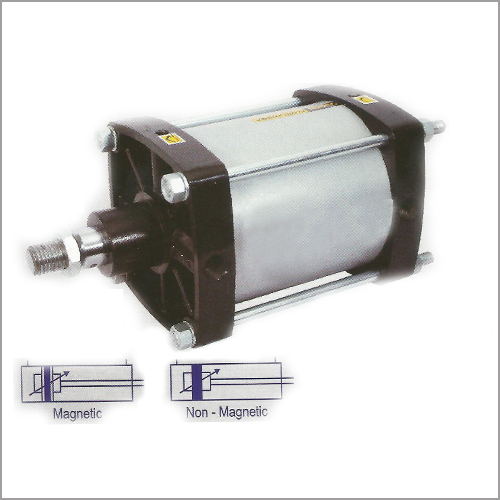

Heavy Duty Pneumatic Cylinder (STAINLESS STEEL Pipe with Adjustable Cushioning at Both Ends)
FEATURES
- Large range of bore size
- Stroke availabe up to 2500 mm
- Long established tie rod design, proven raggedness & reliability
- Adjustable cushioning at both end
- Extensive choice of mounting
- Stainless Steel barrel up to 2500 mm
- Available in both magnetic & non-magnetic version
TECHNICAL SPECIFICATIONS
|
|
| BORE SIZE |
125 mm |
150 mm |
200 mm |
300 mm |
400 mm |
450 mm |
| STROKE |
up to 2500 mm |
| CUSHIONING |
Available at both ends |
| BARREL |
Aluminum |
Stainless Steel |
| PISTION ROD |
En 8 with hard chrome plated (25 microns around the shaft) |
| PISTON ROD DIA |
32 mm |
38 mm |
51 mm |
56 mm |
70 mm |
| END COVER |
Cast Iron |
| SEALS |
Polyurethene, Nitrile |
| SURFACE TREATMENT |
Auto finish enameling end cover & cylinder barrel |
| MOUNTING |

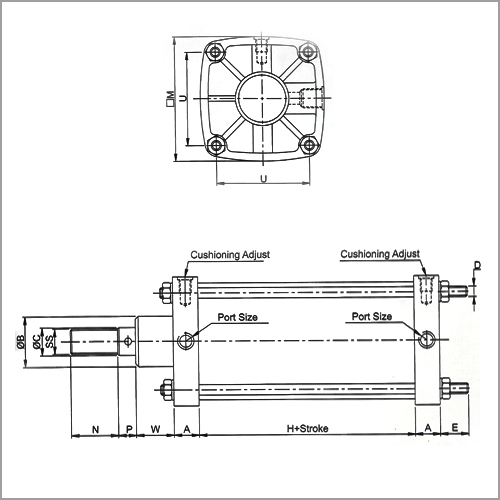

Std. Mounting available (for more detail see dimension) |
