Butterfly Valve Offset Disc
TECHNICAL DATA
- Specifications :
- Size Range : 50 To 300 M.M.
- Pressure Rating : 16 Bar Max (232 PSI)
- Temp. Tating : Material Will Be Selected According To Service.
|

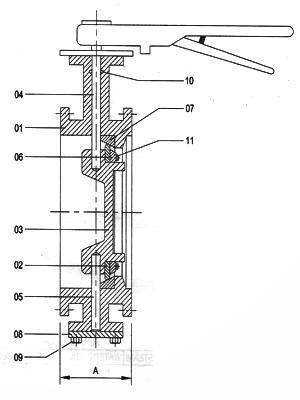

| 01 |
BODY |
CAST IRON IS:210 GR. FG. 200 MIN |
1 |
| 02 |
RUBBER |
EPDM |
1 |
| 03 |
FLAPPER |
S.G. IRON |
1 |
| 04 |
TOP STEM |
S.S. 410 |
1 |
| 05 |
BOTTOM STEM |
S.S. 410 |
1 |
| 06 |
LOCKING RING |
CARBON STEEL |
1 |
| 07 |
SEAT RING |
S.S. 304 |
1 |
| 08 |
THRUST PLATE |
CAST IRON |
1 |
| 09 |
LOCKING BOLT |
M.S. |
REQ. |
| 10 |
O RING |
EPDM |
1 |
| 11 |
HEX. PIN |
CARBON STEEL |
REQ. |
DIMENSION
|
|
|
|
| 2" |
50 |
43 |
| 2.1/2" |
65 |
46 |
| 3" |
80 |
46 |
| 4" |
100 |
52 |
| 5" |
125 |
56 |
| 6" |
150 |
56 |
| 8" |
200 |
60 |
| 10" |
250 |
68 |
| 12" |
300 |
78 |
|
