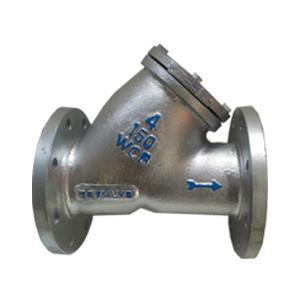

Y-Type Strainer

TECHNICAL DATA

  • Face To Face : As Per Din ND - 40 Type/ ANSI B 16.10.
  • End Connections : Flanged As Per ANSI B 16.5.
  • Shell Wall Thickness : ANSI B 16.34.

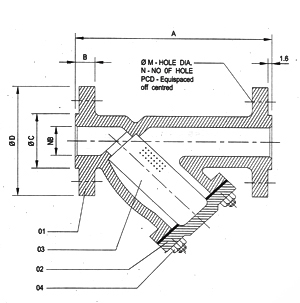

Y-Type Strainer Forged Ends
NO. DESCRIPTION MATERIAL QTY.
01 BODY ASTM A 216 GR. CI/WCB/WC6/CF8/CF8M 1
02 COVER ASTM A 216 GR. WCB 1
03 SCREEN S.S.304/ S.S.316/ G.M. 1
04 COVER STUD & NUT ASTM A 193 GR. B7 -
ASTM A 194 GR. 2H

DIMENSION

SIZE CLASS - 150
IN. M.M NB A B ∅C ∅D ∅M N PCD
1" 25 25 127 11.0 51 108.0 16 4 79.2
1.1/2" 40 38 165 14.2 73 127.0 16 4 98.5
2" 50 51 203 15.7 92 152.0 19 4 120.6
2.1/2" 65 64 216 17.5 105 178.0 19 4 139.7
3" 80 76 241 19.0 127 190.5 19 4 152.4
4" 100 102 292 24.0 157 229.0 19 8 190.5
5" 125 126 356 24.0 186 254.0 22 8 215.9
6" 150 152 406 25.0 216 279.0 22 8 241.3
8" 200 203 495 28.5 270 343.0 22 8 298.4
10" 250 254 622 30.0 324 406.0 25 12 362.0

DIMENSION

SIZE ND - 40
IN. M.M NB A B ∅C ∅D ∅M N PCD
1" 25 25 160 18 68 115 14 4 85
1.1/2" 40 38 200 18 88 150 18 4 110
2" 50 51 230 20 102 165 18 4 125
2.1/2" 65 64 290 22 122 185 18 8 145
3" 80 76 310 24 138 200 18 8 160
4" 100 102 350 24 162 235 23 8 190
5" 125 126 400 26 180 270 27 8 220
6" 150 152 480 28 218 300 27 8 250
8" 200 203 600 35 285 375 30 12 320
10" 250 254 730 38 345 450 30 12 385
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
