Steam Trap-Horizontal Bucket Type

TECHNICAL DATA

  • Size : 15 mm To 50 mm.
  • Working : 150 PSIG Max. At 200° C .
  • End Connections : Screwed/ Socket Weld.

Steam Trap-Horizontal Bucket Type
Steam Trap-Horizontal Bucket Type

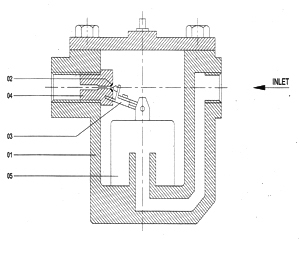

NO. DESCRIPTION MATERIAL QTY.
01 BODY C.I. IS:210 GR. 220 1
02 SEAT GUN METAL 1
03 VALVE S.S. 304 1
04 NIPPLE GUN METAL 1
05 BUCKET S.S. 304 1
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
