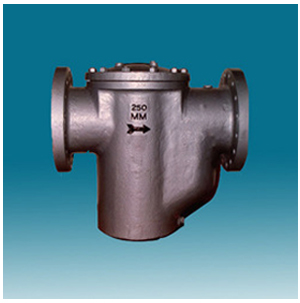

Cast Iron - Pot Type Bolted cover

TECHNICAL DATA

  • Face To Face : As Per Din ND - 40 Type/ ANSI B 16.10.
  • End Connections : Flanged As Per ANSI B 16.5.
  • Shell Wall Thickness : ANSI B 16.34.

BODY / COVER IS 210 Gr FG 200 / 220
SCREEN BRASS/SS 304
MFG STD HAWA / 014
INSP & TEST STD ENDS HAWA / 014
FLANGED TO BS 10 TABLE "E"
HYD-TEST PRESSURE BODY :213 Psig (15 kg/Cm2)
SIZE RANGE 40 MM TO 300 MM
Note: We reserve the right to change design & technical data furnished due to continious product development without prior notice.
